Product Description

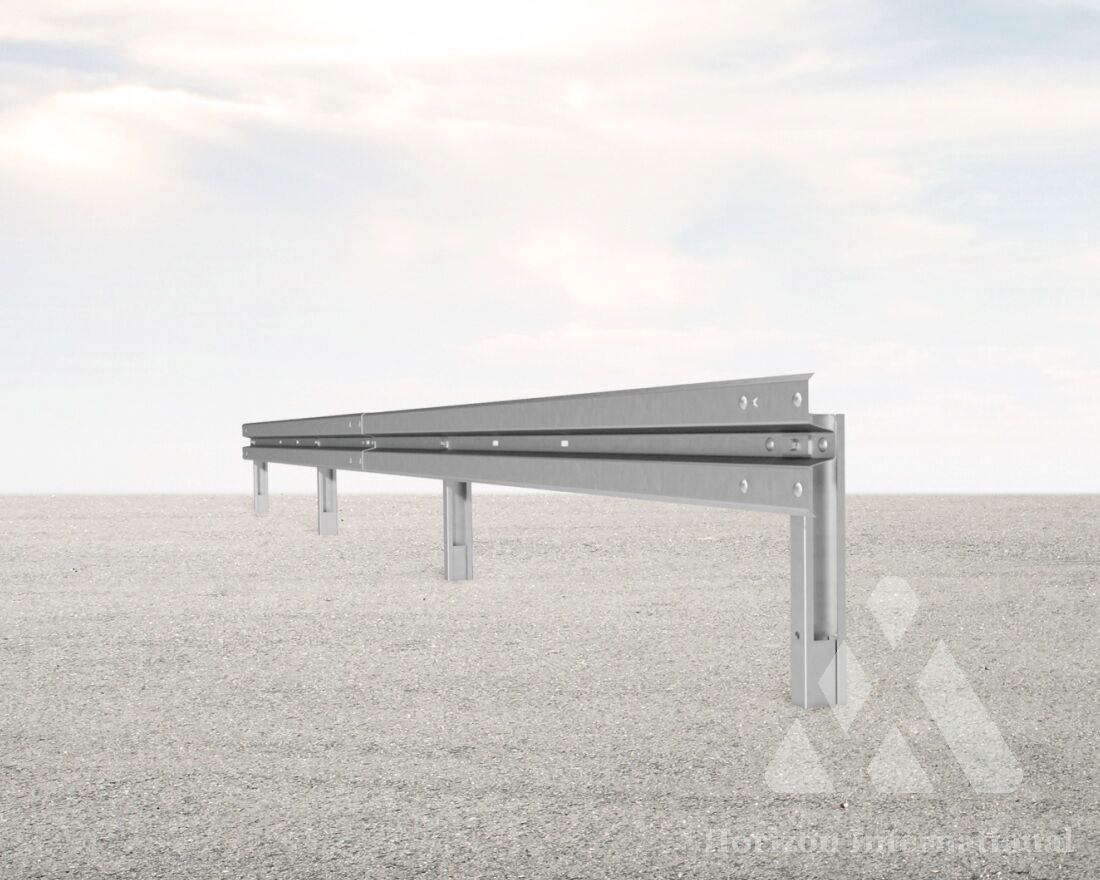

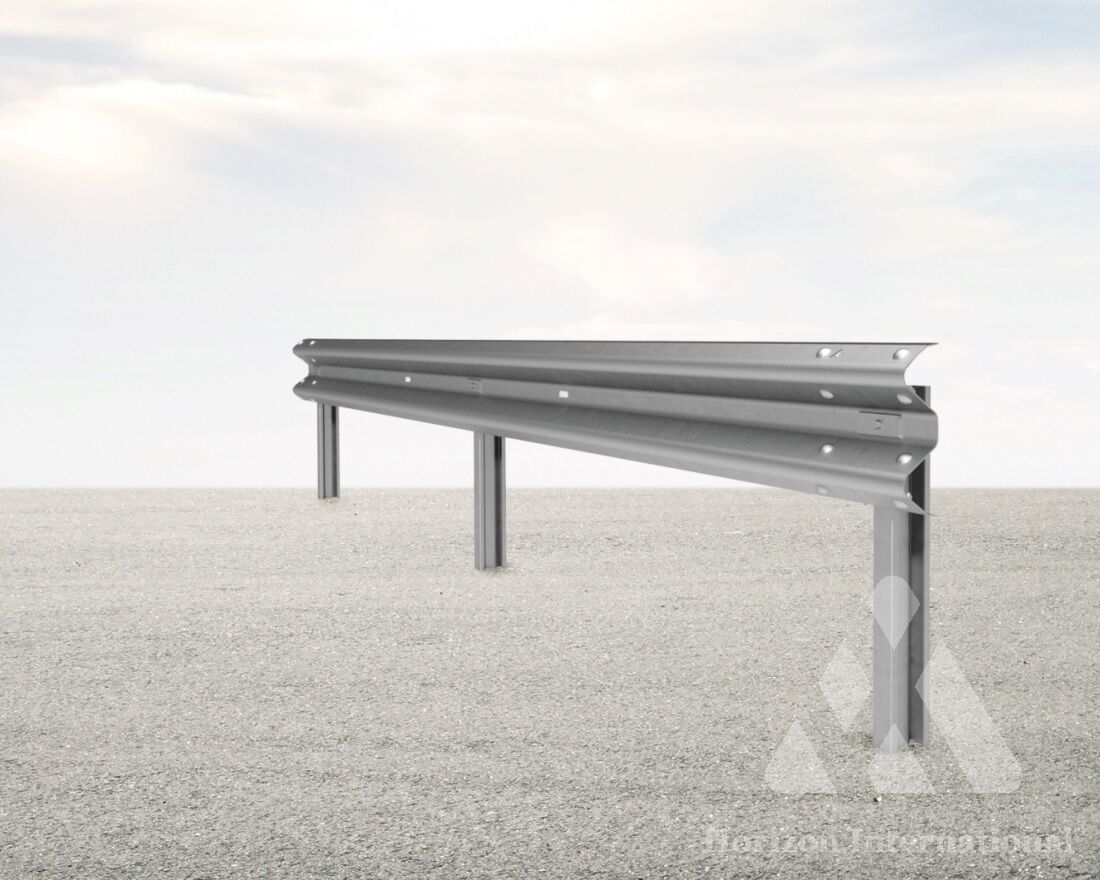

EN1317 highway guardrails


EN1317 highway guardrail beams is widely used in Europe and Middle East countries and some Latin American countries. The raw material used for beams and post is EN10025 S235JR, and galvanizing as per EN ISO1461 standard. There are three types beams for different containment level guardrails system: profile A, profile B and thrie beams. The European standard applies to the highway guardrail system, in which three main standards are identified: Containment level, Working width and Impact severity levels.


W beam sizes4320mm*310mm*81mm*3mm
Thrie beam sizes4320mm*506mm*81mm*3mm
MaterialEN10025 S235JR
Final beam nominal thickness3 mm
C postC120*68*20*5mm, C130*80*25*5mm
Spacer blockC120*68*20*5mm, C130*80*25*5mm
Surface TreatmentHot dip galvanized
Zinc coating thicknessISO1461
StandardsEN10025, EN1317.
Containment levelN1, N2, H1, H2, H4a, H4b
Acceptance testsTB11, TB32, TB42, TB51, TB61, T71
Impact severity levelsA, B, C
Working widthW1, W2, W3, W4, W5, W6, W7, W8.



guard rails production process chart.jpg

Production workshop.jpg

Storage and delivery.jpg

Horizon International company aerial view.JPG



Our Advantages:

1. High quality goods with competitive price and fast delivery time.



2. Technical help with the solutions of questions.



3. OEM design,customized drawing for the guardrail and pipe.



4. Different standard products we would offer for different country and regions.



5. Traffic safety total solution provider, one stop for the w beam guardrails, bridge guardrails and rolling type guardrails with all accessories.



6.The most professional traffic facilities supplier, original factory. Concentration brings professional achievements.
